ZWS-A Double Section Wall Cabinet

The ZWS-A Double Section Wall Cabinet is a double-section 19-inch wall-mounted enclosure designed for network, telecom, and security equipment in space-limited environments, with a swing-frame structure that improves rear access for installation and maintenance.

Network Integrators
Telecom Contractors
Security Installers
IT Procurement Teams
Project Managers
Maintenance Teams
Quick Takeaway
  • A double-section wall cabinet designed for space-limited indoor network, telecom, and security applications.
  • The inner swing frame provides easier rear access than a standard single-section wall cabinet.
  • Before ordering, confirm equipment depth, total load, service access needs, and whether swing-frame maintenance clearance is available on site.
Reserved Image Module

Add cabinet front view, swing-frame open view, rear-access image, or installation scene photo here.

Reserved Video Module

Suitable for swing-frame demo, installation guide, maintenance access explanation, or factory overview video.


■1) Overview

The ZWS-A Double Section Wall Cabinet is a 19-inch wall-mounted enclosure built for network, telecom, and security equipment in space-limited indoor environments. Unlike a basic single-section cabinet, it uses a double-section structure with an inner swing frame that improves rear access during installation, cable work, and later maintenance.

For engineering teams, the main reason to select this cabinet is not only enclosure protection. The real value is the service access logic. When rear cable routing or equipment-side access matters, a swing-frame wall cabinet can reduce maintenance difficulty and make dense wall-mounted deployments more manageable.

Field reality

Many wall-mounted projects fail not because the cabinet is too small, but because rear access was ignored during planning. A double-section swing-frame design is often chosen to solve that exact service problem.

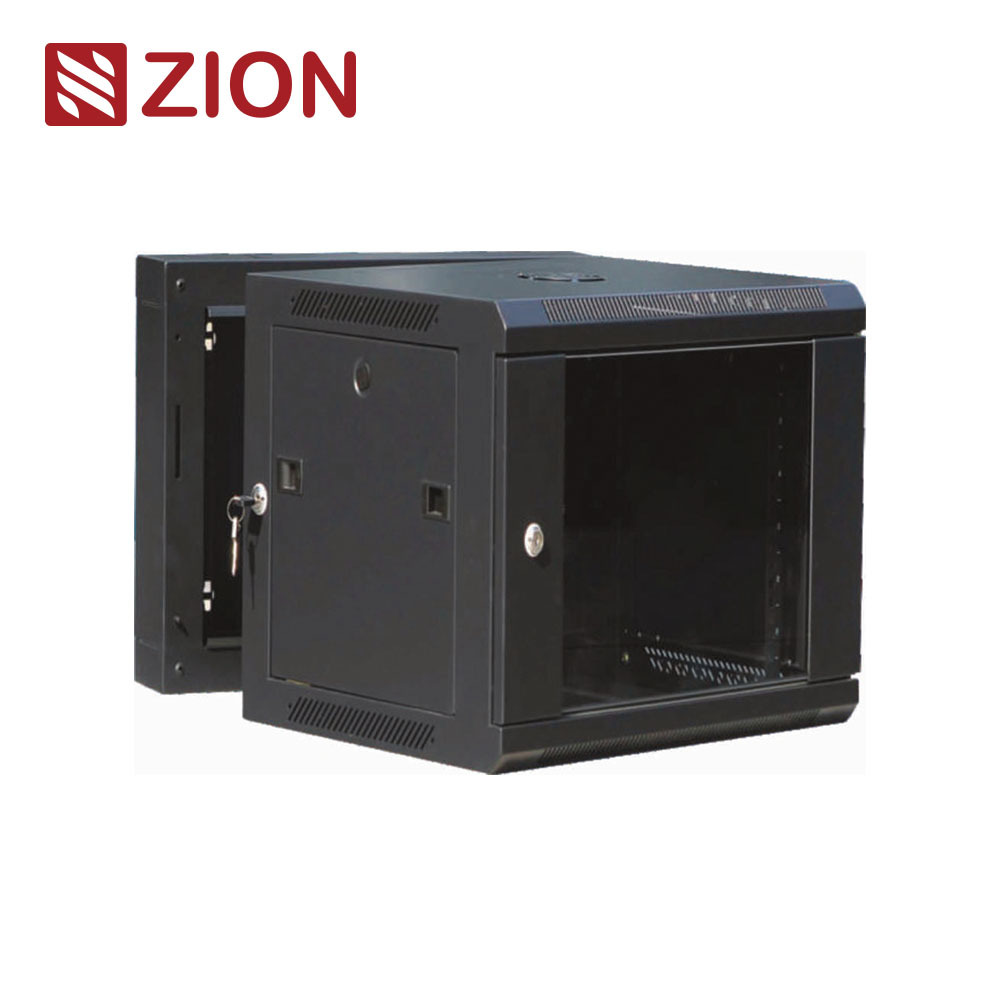

ZWS-A Double Section Wall Cabinet with Swing Frame Access, Double-Section Design, and 180° Glass Front Door 0

■2) Key Features

The ZWS-A is designed for projects that need more than basic front-door access. Its swing-frame layout helps field teams work more efficiently in wall-mounted environments where rear cable and device access would otherwise be difficult.

Feature What It Means Project Benefit
Welded Steel Structure Stable and durable cabinet construction Improves rigidity and structural reliability
Double-Section Design Inner swing frame compatible with 19-inch equipment Makes rear-side installation and maintenance easier
180° Glass Front Door Wide-opening front access Improves front-side servicing and inspection
Removable Side Panels Convenient access with optional lock Adds flexibility for installation and maintenance
Swing Frame Access Rear section swings over 90° Simplifies cable and equipment access in tight spaces
Top & Bottom Cable Entry Knock-out design for flexible routing Adapts to different field cable directions
Adjustable Mounting Rails L-shaped profiles for depth adjustment Improves fit for installed equipment
Fan-Ready Top Panel Supports active ventilation Useful for enclosed active equipment
Accessory Compatible Supports shelves, cable organizers, and cooling modules Improves project flexibility and customization

■3) Technical Specifications

Item Specification
Rack Standard 19-inch
Frame Material SPCC high-quality cold rolled steel
Mounting Profile Thickness 1.2 mm
Other Parts Thickness 1.0 mm
Surface Treatment Degreasing → Pickling → Phosphating → Powder Coating
Static Loading Capacity Up to 30 kg
Protection Level IP20
Front Door 180° glass front door, with different door options shown in structure diagram
Swing Frame Rear section swings over 90°
Cable Entry Top and bottom cable entry, knock-out design
Ventilation Fan-ready top panel
Standards Compliance ANSI/EIA RS-310-D, IEC 60297-2, DIN 41497 Part 1, DIN 41494 Part 7, GB/T 3047.2-92
Key takeaway
30 kg static load means this series is for lighter-duty applications than many standard wall cabinets.
IP20 confirms indoor deployment as the baseline.
Swing-frame access is the key reason to select this cabinet over a basic single-section wall cabinet.

ZWS-A Double Section Wall Cabinet with Swing Frame Access, Double-Section Design, and 180° Glass Front Door 1

■4) Construction / Materials

The ZWS-A uses a steel-based double-section architecture that includes a rear box, cabinet body, side panels, mounting profile, and front door arrangement. The structure is designed to combine wall-mount stability with easier maintenance access through the swing-frame concept.

Component Qty Material / Spec Surface Finish Notes
Mounting Plate 4 pcs 0.8 mm cold rolled steel Powder coated —
Rear Door 1 pc 1.2 mm cold rolled steel Powder coated With lock
Frame 1 pc 1.2 mm cold rolled steel Powder coated Main cabinet frame
Inner Swing Frame Door 1 pc 1.2 mm cold rolled steel Powder coated Supports double-section access logic
Side Panel 2 pcs 0.8 mm cold rolled steel Powder coated Removable
Mounting Rail 4 pcs 1.2 mm cold rolled steel Powder coated Adjustable L-shaped profile
Lock / Screws / Nuts / Wrench Included set Project hardware — Assembly and servicing support
Practical rule

Choose a double-section cabinet when rear cable access will matter throughout the life of the installation, not just on the first day of mounting.


■5) Applications

The ZWS-A is best suited to indoor projects where equipment concentration is moderate, wall-mount installation is preferred, and rear-side access improves maintenance efficiency. It is especially useful in space-limited environments where traditional rack access is more difficult.

Application Scenario Why ZWS-A Fits What to Verify Before Approval
Network edge equipment point Swing-frame rear access helps cable handling and maintenance Wall clearance for opening swing section
Telecom distribution site Good fit where rear cable work is frequent Cable direction, depth, service interval
Security / CCTV installation Organized enclosure with better servicing access than fixed wall cabinets Heat load, front door choice, accessory need
Space-limited indoor room Wall-mounted format saves floor area while improving rear access Opening radius, aisle clearance, maintenance workflow
Light-duty managed equipment point Provides controlled enclosure for lighter loads with service-friendly structure Total load, thermal planning, future changes

ZWS-A Double Section Wall Cabinet with Swing Frame Access, Double-Section Design, and 180° Glass Front Door 2

■6) Decision Rules / Engineer’s Shortcut

The key engineering question is not just “Do I need a wall cabinet?” It is “Do I need rear access after installation?” If the answer is yes, a double-section swing-frame design may be the more maintainable choice.

Decision Point Choose ZWS-A When Do Not Choose It When Alternative Direction Cost / Risk / Maintainability Impact
Access pattern Rear-side cable or equipment access will be needed after installation Front-only access is sufficient for the full project lifecycle Use a single-section wall cabinet Correct swing-frame selection reduces future labor and rework
Load level Total installed load remains within 30 kg static capacity The installation requires higher load tolerance Select a heavier-duty wall or floor cabinet Ignoring load limits creates safety and reliability risk
Environment The site is indoor and IP20 is acceptable Outdoor or higher ingress protection is required Use higher-protection enclosure options Wrong environment choice raises failure risk
Swing clearance There is enough wall-side clearance for over-90° rear swing access The site is too constrained to open the swing frame properly Use a different cabinet format or rethink wall position Without opening space, the main advantage of the product is lost
Depth and cable routing Equipment depth and cable routing match 550 mm or 600 mm depth options Installed devices exceed usable space or bend allowance Move to deeper or different enclosure type Depth mistakes delay installation and complicate service
Thermal behavior Heat load is moderate and fan-ready support is adequate Enclosed active devices need stronger thermal strategy Add cooling modules or use a more ventilation-oriented enclosure Better thermal planning improves equipment stability
Practical rule

Choose ZWS-A when rear access is a real maintenance need, the installed load stays under 30 kg, and the site has enough opening clearance for the swing frame.

■7) Selection Guide

A correct ZWS-A choice depends on maintenance workflow as much as on cabinet size. In procurement, teams often compare dimensions first, but the real deciding factors are swing access, load level, service space, and cable-management needs.

Selection Factor Question to Ask Recommendation
Rear access need Will technicians need access to rear cabling or equipment sides after installation? If yes, double-section design is often the better choice
Load Does the full installed load remain within 30 kg? Check complete equipment weight, not only rack device weight
Depth Will 550 mm or 600 mm depth fit actual equipment and cable allowance? Measure device body plus connector and bend space
Swing clearance Is there enough space to open the swing frame over 90°? Verify wall location and nearby obstacles before order release
Accessories Will shelves, cable organizers, or cooling modules be needed? Include full accessory set in the RFQ
Door option Should the project use glass, steel, or perforated front door style? Match visibility and airflow needs during the quotation stage
Part No. Height (U) Width (mm) Depth (mm) Cabinet Height (mm)
ZWS-A06-655 6U 600 550 370
ZWS-A09-655 9U 600 550 503.3
ZWS-A12-655 12U 600 550 636.7
ZWS-A15-655 15U 600 550 770
ZWS-A18-655 18U 600 550 903.4
ZWS-A06-660 6U 600 600 370
ZWS-A09-660 9U 600 600 503.3
ZWS-A12-660 12U 600 600 636.7
ZWS-A15-660 15U 600 600 770
ZWS-A18-660 18U 600 600 903.4

■8) Model List

The ZWS-A series is available from 6U to 18U, with 600 mm width and either 550 mm or 600 mm depth. This allows teams to choose a configuration based on both rack-unit requirement and real cable/service depth.

  • 6U, 9U, 12U, 15U, and 18U options are available.
  • Depth options include 550 mm and 600 mm.
  • Cabinet height increases with rack-unit count, helping project teams estimate wall occupancy more accurately.
  • The part-number structure simplifies procurement standardization across multiple project sizes.

■9) FAQ

1. What is the main advantage of a double-section wall cabinet?

Its main advantage is rear access. The inner swing frame allows technicians to reach cabling and equipment more easily after installation.

2. Is the ZWS-A suitable for heavy equipment?

No. The stated static loading capacity is up to 30 kg, so it is intended for lighter-duty indoor applications.

3. When should I choose this instead of a single-section wall cabinet?

Choose it when rear cable access, equipment-side service, or frequent maintenance makes a swing-frame structure more practical than a fixed cabinet body.

4. Does it support different front door types?

Yes. The structure diagram shows different front door options, including glass, steel, and perforated steel door styles depending on project needs.

5. What should be checked before finalizing the installation location?

Check wall strength, side opening clearance for the swing frame, front servicing space, and cable-entry direction before fixing the cabinet position.

6. What accessories can be considered?

The cabinet supports shelves, cable organizers, and cooling modules, which can be selected according to the project’s device and maintenance requirements.

■10) Conclusion

The ZWS-A Double Section Wall Cabinet is a practical solution for indoor network, telecom, and security deployments where rear access matters as much as enclosure protection. Its double-section swing-frame structure makes maintenance easier in spaces where standard fixed wall cabinets can become inconvenient after installation.

For the best project result, define the cabinet not only by rack unit size, but also by total load, real device depth, swing clearance, and maintenance workflow. When these factors are aligned early, ZWS-A becomes an efficient and service-friendly wall-mount enclosure choice.
